MICHELIN®
Pilot® Sport 4
  • Summer

    Summer

  • Ultra-High Performance Sport

MICHELIN® PILOT® SPORT 4

  • Ultra-High Performance Sport

From mind to road. Instantly. Adapt to the road with precision handling with safety made to last, steering control[1] and longevity[2].

*High levels of reactivity and steering control on wet roads[1]
*Great wet braking performance with safety made to last[1]
*Chosen by premium carmakers
*Mileage Warranty: 20,000 miles. See warranty for details.

  • Summer

    Summer

Why should you consider this tire?

Control and reactivity

Dynamic Response Technology ensures optimum transmission of steering instructions to the road. The ultra-reactive tread pattern design adapts continuously to the road for optimized contact and steering control on wet roads to give you total control.

Exceptional wet and dry grip

Formula-E Tread Pattern and a new generation of functional elastomers and silica provide are combined with wide grooves and optimized tread to ensure a high level of drainage on wet surfaces for excellent grip and braking.

Improved efficiency and longevity

Put more power to the pavement with 13% less rolling resistance than the Pilot® Sport 3. A hybrid aramid and nylon belt combined with an optimized contact patch strengthens the tread pattern, resulting in more rubber contact with the road to improve longevity.

Premium Touch Design

Exterior sidewall with Premium Touch Design and a deep rim protector.

Warranties

*Mileage Warranty Exceptions

Split fitments – If your vehicle has tires of different sizes on the front versus the rear axles, your tires cannot be rotated as recommended. Therefore, the mileage warranty on each rear tire will cover half the number of kilometres as the standard mileage warranty for that particular tire line. ZP (Zero Pressure) tires – The maximum mileage warranty for ZP tires is 30,000 miles.

Find your tires in seconds

This speed rating and/or size of this tire may vary slightly from that on the vehicle placard. At the time of installation, the Service Provider will confirm that the tire has adequate load capacity, determine if any inflation pressure adjustments are necessary with this alternate size, and notify the vehicle owner of the maximum speed capability of these tires.

67 sizes available for this tire

Rim

16''
17''
18''
19''
20''
21''
205/55ZR16 (91Y) BSW
MSPN 38956
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 6.50"
Overall Diameter 24.92
Max Load, Single (LB @ PSI) 1356 @ 51
Sidewall Black Sidewall
Revs/MI 836
Tire Weight 20.13
Rim Width Range (Min/Max) 5.50-7.50
Tread Depth (in 32nds) 9.5
225/50ZR16 (92Y) BSW
MSPN 58771
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 7.00"
Overall Diameter 24.92
Max Load, Single (LB @ PSI) 1389 @ 51
Sidewall Black Sidewall
Revs/MI 836
Tire Weight 21.21
Rim Width Range (Min/Max) 6.00-8.00
Tread Depth (in 32nds) 9.5
195/45ZR17 81W BSW
MSPN 44008
Mileage Warranty 20,000
Section Width on Measuring Rim Width 7.00" on 6.50"
Overall Diameter 23.92
Max Load, Single (LB @ PSI) 1019 @ 51
Sidewall Black Sidewall
Revs/MI 869
Tire Weight 17.81
Rim Width Range (Min/Max) 6.00-7.50
Tread Depth (in 32nds) 9.5
205/40ZR17/XL (84Y) BSW
MSPN 43945
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 23.52
Max Load, Single (LB @ PSI) 1102 @ 50
Sidewall Black Sidewall
Revs/MI 887
Tire Weight 18.14
Rim Width Range (Min/Max) 7.00-8.00
Tread Depth (in 32nds) 9.5
205/45ZR17/XL (88Y) BSW
MSPN 74535
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.00"
Overall Diameter 24.32
Max Load, Single (LB @ PSI) 1234 @ 50
Sidewall Black Sidewall
Revs/MI 858
Tire Weight 19.00
Rim Width Range (Min/Max) 6.50-7.50
Tread Depth (in 32nds) 9.5
205/50ZR17 89W ZP BSW
MSPN 25045
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 6.50"
Overall Diameter 25.12
Max Load, Single (LB @ PSI) 1278 @ 51
Sidewall Black Sidewall
Revs/MI 828
Tire Weight 24.18
Rim Width Range (Min/Max) 5.50-7.50
Tread Depth (in 32nds) 9.5
215/50ZR17/XL (95Y) BSW
MSPN 05625
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.00"
Overall Diameter 25.52
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 815
Tire Weight 21.34
Rim Width Range (Min/Max) 6.00-7.50
Tread Depth (in 32nds) 9.5
215/55ZR17/XL (98Y) BSW
MSPN 12532
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.00"
Overall Diameter 26.32
Max Load, Single (LB @ PSI) 1653 @ 50
Sidewall Black Sidewall
Revs/MI 791
Tire Weight 22.44
Rim Width Range (Min/Max) 6.00-7.50
Tread Depth (in 32nds) 9.5
225/45ZR17 91W ZP BSW
MSPN 21171
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.02
Max Load, Single (LB @ PSI) 1356 @ 51
Sidewall Black Sidewall
Revs/MI 833
Tire Weight 24.98
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
225/45ZR17 91Y ZP BSW
MSPN 55392
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.02
Max Load, Single (LB @ PSI) 1356 @ 51
Sidewall Black Sidewall
Revs/MI 833
Tire Weight 24.98
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
225/45ZR17/XL (94Y) BSW
MSPN 39747
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.02
Max Load, Single (LB @ PSI) 1477 @ 50
Sidewall Black Sidewall
Revs/MI 833
Tire Weight 20.97
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
225/55ZR17/XL (101Y) BSW
MSPN 98823
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 7.00"
Overall Diameter 26.82
Max Load, Single (LB @ PSI) 1819 @ 50
Sidewall Black Sidewall
Revs/MI 777
Tire Weight 23.63
Rim Width Range (Min/Max) 6.00-8.00
Tread Depth (in 32nds) 9.5
235/45ZR17/XL (97Y) BSW
MSPN 20092
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 25.42
Max Load, Single (LB @ PSI) 1609 @ 50
Sidewall Black Sidewall
Revs/MI 821
Tire Weight 22.02
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
255/40ZR17/XL (98Y) BSW
MSPN 73679
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 25.02
Max Load, Single (LB @ PSI) 1653 @ 50
Sidewall Black Sidewall
Revs/MI 831
Tire Weight 23.52
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
255/45ZR17 (98Y) BSW
MSPN 12581
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 8.50"
Overall Diameter 26.12
Max Load, Single (LB @ PSI) 1653 @ 51
Sidewall Black Sidewall
Revs/MI 798
Tire Weight 24.38
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
205/40ZR18/XL (86Y) FOR BSW
MSPN 39377
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 24.52
Max Load, Single (LB @ PSI) 1168 @ 50
Sidewall Black Sidewall
Revs/MI 851
Tire Weight 20.08
Rim Width Range (Min/Max) 7.00-8.00
Tread Depth (in 32nds) 9.5
215/40R18 85Y SUB BSW
MSPN 56011
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 24.82
Max Load, Single (LB @ PSI) 1135 @ 51
Sidewall Black Sidewall
Revs/MI 840
Tire Weight 20.39
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
215/45ZR18/XL (93Y) BSW
MSPN 62078
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.00"
Overall Diameter 25.62
Max Load, Single (LB @ PSI) 1433 @ 50
Sidewall Black Sidewall
Revs/MI 812
Tire Weight 20.41
Rim Width Range (Min/Max) 7.00-8.00
Tread Depth (in 32nds) 9.5
225/40R18/XL 92Y ★ BSW
MSPN 38247
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 25.12
Max Load, Single (LB @ PSI) 1389 @ 50
Sidewall Black Sidewall
Revs/MI 829
Tire Weight 20.97
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
225/40ZR18/XL (92Y) BSW
MSPN 09869
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 25.12
Max Load, Single (LB @ PSI) 1389 @ 50
Sidewall Black Sidewall
Revs/MI 829
Tire Weight 21.54
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
225/45R18/XL 95W MO BSW
MSPN 21086
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.92
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 802
Tire Weight 21.61
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
225/45R18/XL 95Y ★ ZP BSW
MSPN 91640
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.92
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 802
Tire Weight 25.79
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
225/45R18/XL 95Y ★ BSW
MSPN 01333
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 25.92
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 802
Tire Weight 22.05
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
235/40ZR18/XL (95Y) MO1 BSW
MSPN 26964
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 25.42
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 819
Tire Weight 22.16
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.0
235/45ZR18/XL 98Y T0 Acoustic BSW
MSPN 45912
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 26.32
Max Load, Single (LB @ PSI) 1653 @ 50
Sidewall Black Sidewall
Revs/MI 790
Tire Weight 24.25
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.0
245/40ZR18 93Y AO BSW
MSPN 05629
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 25.72
Max Load, Single (LB @ PSI) 1433 @ 51
Sidewall Black Sidewall
Revs/MI 809
Tire Weight 24.80
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
245/40ZR18/XL (97Y) MO1 BSW
MSPN 15903
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 25.72
Max Load, Single (LB @ PSI) 1609 @ 50
Sidewall Black Sidewall
Revs/MI 809
Tire Weight 23.59
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
245/45R18/XL 100Y ★ ZP BSW
MSPN 04253
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 26.72
Max Load, Single (LB @ PSI) 1763 @ 50
Sidewall Black Sidewall
Revs/MI 780
Tire Weight 28.88
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
245/50ZR18 (100Y) BSW
MSPN 30748
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 7.50"
Overall Diameter 27.72
Max Load, Single (LB @ PSI) 1763 @ 51
Sidewall Black Sidewall
Revs/MI 751
Tire Weight 26.08
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.5
255/40R18/XL 99Y ★ ZP BSW
MSPN 20547
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 26.02
Max Load, Single (LB @ PSI) 1709 @ 50
Sidewall Black Sidewall
Revs/MI 799
Tire Weight 28.42
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
265/35ZR18/XL (97Y) BSW
MSPN 95900
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 25.32
Max Load, Single (LB @ PSI) 1609 @ 50
Sidewall Black Sidewall
Revs/MI 822
Tire Weight 27.16
Rim Width Range (Min/Max) 9.00-10.50
Tread Depth (in 32nds) 9.5
275/40R18/XL 103Y ★ ZP BSW
MSPN 22311
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 26.72
Max Load, Single (LB @ PSI) 1929 @ 50
Sidewall Black Sidewall
Revs/MI 780
Tire Weight 32.63
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
275/40ZR18/XL (103Y) BSW
MSPN 07107
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 26.72
Max Load, Single (LB @ PSI) 1929 @ 50
Sidewall Black Sidewall
Revs/MI 780
Tire Weight 28.22
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
275/45ZR18/XL (107Y) BSW
MSPN 60228
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 27.82
Max Load, Single (LB @ PSI) 2149 @ 50
Sidewall Black Sidewall
Revs/MI 749
Tire Weight 29.67
Rim Width Range (Min/Max) 8.50-10.50
Tread Depth (in 32nds) 9.5
225/40ZR19/XL (93Y) KIA BSW
MSPN 17160
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 26.12
Max Load, Single (LB @ PSI) 1433 @ 50
Sidewall Black Sidewall
Revs/MI 797
Tire Weight 23.68
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
225/45ZR19/XL 96W ZP BSW
MSPN 81013
Mileage Warranty 20,000
Section Width on Measuring Rim Width 8.00" on 7.50"
Overall Diameter 27.02
Max Load, Single (LB @ PSI) 1565 @ 50
Sidewall Black Sidewall
Revs/MI 771
Tire Weight 25.37
Rim Width Range (Min/Max) 7.00-8.50
Tread Depth (in 32nds) 9.0
225/55R19/XL 103Y NF0 BSW
MSPN 19105
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 7.00"
Overall Diameter 28.82
Max Load, Single (LB @ PSI) 1929 @ 50
Sidewall Black Sidewall
Revs/MI 723
Tire Weight 29.54
Rim Width Range (Min/Max) 6.00-8.00
Tread Depth (in 32nds) 9.5
235/45ZR19/XL (99Y) MO BSW
MSPN 10651
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 27.42
Max Load, Single (LB @ PSI) 1709 @ 50
Sidewall Black Sidewall
Revs/MI 760
Tire Weight 25.09
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.0
245/40R19/XL 98Y ★ ZP BSW
MSPN 56276
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 26.72
Max Load, Single (LB @ PSI) 1653 @ 50
Sidewall Black Sidewall
Revs/MI 778
Tire Weight 28.00
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
245/45R19/XL 102Y AO Acoustic BSW
MSPN 38057
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 27.72
Max Load, Single (LB @ PSI) 1874 @ 50
Sidewall Black Sidewall
Revs/MI 751
Tire Weight 25.68
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
245/45ZR19/XL 102Y GOE BSW
MSPN 55704
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 27.72
Max Load, Single (LB @ PSI) 1874 @ 50
Sidewall Black Sidewall
Revs/MI 751
Tire Weight 26.01
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
255/35ZR19/XL (96Y) KIA BSW
MSPN 30213
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 26.02
Max Load, Single (LB @ PSI) 1565 @ 50
Sidewall Black Sidewall
Revs/MI 799
Tire Weight 26.46
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
255/40R19/XL 100W VOL Acoustic BSW
MSPN 95379
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 27.12
Max Load, Single (LB @ PSI) 1764 @ 50
Sidewall Black Sidewall
Revs/MI 769
Tire Weight 27.60
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
255/40ZR19/XL 100W VOL BSW
MSPN 88791
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 27.12
Max Load, Single (LB @ PSI) 1763 @ 50
Sidewall Black Sidewall
Revs/MI 769
Tire Weight 27.23
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
255/45R19/XL 104Y AO Acoustic BSW
MSPN 21950
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 8.50"
Overall Diameter 28.12
Max Load, Single (LB @ PSI) 1984 @ 50
Sidewall Black Sidewall
Revs/MI 741
Tire Weight 27.89
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
255/45R19/XL 104Y AO Acoustic BSW
MSPN 56201
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 8.50"
Overall Diameter 28.12
Max Load, Single (LB @ PSI) 1984 @ 50
Sidewall Black Sidewall
Revs/MI 741
Tire Weight 28.73
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
265/45ZR19/XL (105Y) ND0 BSW
MSPN 44329
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 28.42
Max Load, Single (LB @ PSI) 2039 @ 50
Sidewall Black Sidewall
Revs/MI 733
Tire Weight 29.65
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
265/45ZR19/XL (105Y) N0 BSW
MSPN 52924
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 28.42
Max Load, Single (LB @ PSI) 2039 @ 50
Sidewall Black Sidewall
Revs/MI 733
Tire Weight 29.89
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
275/35R19/XL 100Y ★ ZP BSW
MSPN 67563
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 26.62
Max Load, Single (LB @ PSI) 1763 @ 50
Sidewall Black Sidewall
Revs/MI 783
Tire Weight 29.98
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
275/40ZR19/XL 105Y GOE BSW
MSPN 78563
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 27.72
Max Load, Single (LB @ PSI) 2039 @ 50
Sidewall Black Sidewall
Revs/MI 751
Tire Weight 30.64
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
275/45R19/XL 108Y NF0 BSW
MSPN 70568
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 28.82
Max Load, Single (LB @ PSI) 2205 @ 50
Sidewall Black Sidewall
Revs/MI 723
Tire Weight 33.29
Rim Width Range (Min/Max) 8.50-10.50
Tread Depth (in 32nds) 9.5
295/40ZR19/XL (108Y) N0 BSW
MSPN 06926
Mileage Warranty 20,000
Section Width on Measuring Rim Width 11.00" on 10.50"
Overall Diameter 28.32
Max Load, Single (LB @ PSI) 2205 @ 50
Sidewall Black Sidewall
Revs/MI 735
Tire Weight 31.48
Rim Width Range (Min/Max) 10.00-11.50
Tread Depth (in 32nds) 9.5
295/40ZR19/XL (108Y) ND0 BSW
MSPN 14596
Mileage Warranty 20,000
Section Width on Measuring Rim Width 11.00" on 10.50"
Overall Diameter 28.32
Max Load, Single (LB @ PSI) 2205 @ 50
Sidewall Black Sidewall
Revs/MI 735
Tire Weight 33.51
Rim Width Range (Min/Max) 10.00-11.50
Tread Depth (in 32nds) 9.5
245/35R20/XL 95W VOL BSW
MSPN 42512
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 26.82
Max Load, Single (LB @ PSI) 1521 @ 50
Sidewall Black Sidewall
Revs/MI 777
Tire Weight 23.81
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.0
245/40ZR20/XL 99Y ZP BSW
MSPN 23693
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.50"
Overall Diameter 27.72
Max Load, Single (LB @ PSI) 1709 @ 50
Sidewall Black Sidewall
Revs/MI 750
Tire Weight 28.13
Rim Width Range (Min/Max) 8.00-9.50
Tread Depth (in 32nds) 9.5
245/45RF20 99Y ZP BSW
MSPN 52969
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 1709 @ 50
Sidewall Black Sidewall
Revs/MI 726
Tire Weight 29.72
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.0
245/45R20/XL 103Y NF0 BSW
MSPN 64938
Mileage Warranty 20,000
Section Width on Measuring Rim Width 9.00" on 8.00"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 1929 @ 50
Sidewall Black Sidewall
Revs/MI 726
Tire Weight 29.39
Rim Width Range (Min/Max) 7.50-9.00
Tread Depth (in 32nds) 9.5
255/40R20/XL 101Y AO Acoustic BSW
MSPN 26672
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 28.02
Max Load, Single (LB @ PSI) 1819 @ 50
Sidewall Black Sidewall
Revs/MI 742
Tire Weight 28.22
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
255/40ZR20/XL 101Y ZP BSW
MSPN 31283
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.00"
Overall Diameter 28.02
Max Load, Single (LB @ PSI) 1819 @ 50
Sidewall Black Sidewall
Revs/MI 742
Tire Weight 28.46
Rim Width Range (Min/Max) 8.50-10.00
Tread Depth (in 32nds) 9.5
275/35ZR20/XL 102Y ZP BSW
MSPN 61368
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 27.62
Max Load, Single (LB @ PSI) 1874 @ 50
Sidewall Black Sidewall
Revs/MI 755
Tire Weight 29.74
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
275/40RF20 102Y ZP BSW
MSPN 10899
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 1874 @ 51
Sidewall Black Sidewall
Revs/MI 726
Tire Weight 32.67
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.0
275/40ZR20/XL (106Y) N0 Acoustic BSW
MSPN 71282
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 2094 @ 50
Sidewall Black Sidewall
Revs/MI 726
Tire Weight 30.86
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
285/40R20/XL 108Y NF0 BSW
MSPN 46442
Mileage Warranty 20,000
Section Width on Measuring Rim Width 11.00" on 10.00"
Overall Diameter 29.02
Max Load, Single (LB @ PSI) 2205 @ 50
Sidewall Black Sidewall
Revs/MI 718
Tire Weight 32.96
Rim Width Range (Min/Max) 9.50-11.00
Tread Depth (in 32nds) 9.5
315/35ZR20/XL (110Y) N0 Acoustic BSW
MSPN 72239
Mileage Warranty 20,000
Section Width on Measuring Rim Width 12.00" on 11.00"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 2337 @ 50
Sidewall Black Sidewall
Revs/MI 726
Tire Weight 33.73
Rim Width Range (Min/Max) 10.50-12.50
Tread Depth (in 32nds) 9.5
275/35ZR21/XL (103Y) N0 Acoustic BSW
MSPN 63342
Mileage Warranty 20,000
Section Width on Measuring Rim Width 10.00" on 9.50"
Overall Diameter 28.52
Max Load, Single (LB @ PSI) 1929 @ 50
Sidewall Black Sidewall
Revs/MI 729
Tire Weight 30.82
Rim Width Range (Min/Max) 9.00-11.00
Tread Depth (in 32nds) 9.5
315/30ZR21/XL (105Y) N0 Acoustic BSW
MSPN 21661
Mileage Warranty 20,000
Section Width on Measuring Rim Width 12.00" on 11.00"
Overall Diameter 28.52
Max Load, Single (LB @ PSI) 2039 @ 50
Sidewall Black Sidewall
Revs/MI 731
Tire Weight 34.15
Rim Width Range (Min/Max) 10.50-11.50
Tread Depth (in 32nds) 9.5
325/30ZR21/XL (108Y) N0 Acoustic BSW
MSPN 15324
Mileage Warranty 20,000
Section Width on Measuring Rim Width 13.00" on 11.50"
Overall Diameter 28.72
Max Load, Single (LB @ PSI) 2205 @ 50
Sidewall Black Sidewall
Revs/MI 725
Tire Weight 34.15
Rim Width Range (Min/Max) 11.00-12.00
Tread Depth (in 32nds) 9.5

Legal  mentions

OE [Vehicle Manufacturer] Sidewall Marking: N# = Porsche
OE Code [Original Equipment Key]: FOR = Ford, POR = Porsche, KIA = Kia
# The Load and Speed Index data are not shown on the tire sidewall and are provided for information only purposes

XL = Extra Load

>> The sizes shown are average design values for tires measured on specified measuring rim widths. Some tires may vary from this value by +/-3% of the section height (affecting overall diameter), and +/-4% of the section width.
>> Section width varies approximately 0.2" (5mm) for every 0.5" change in rim width.

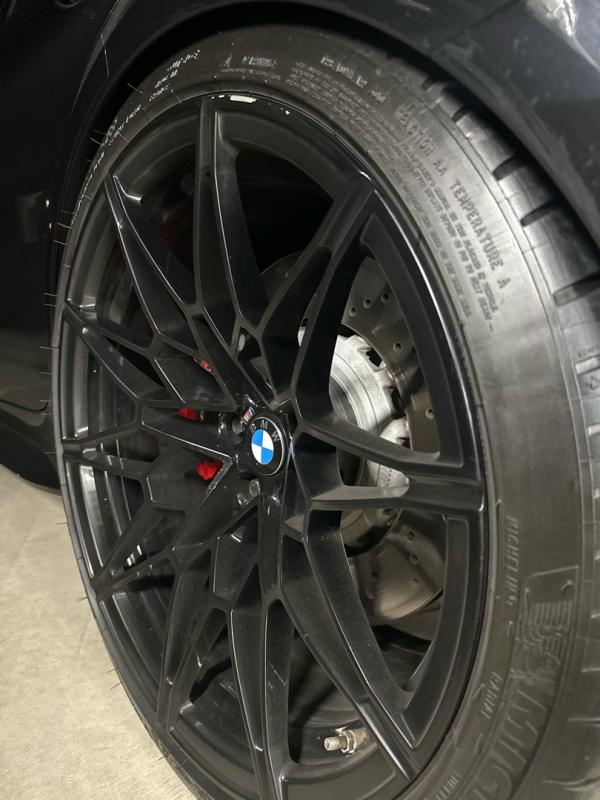

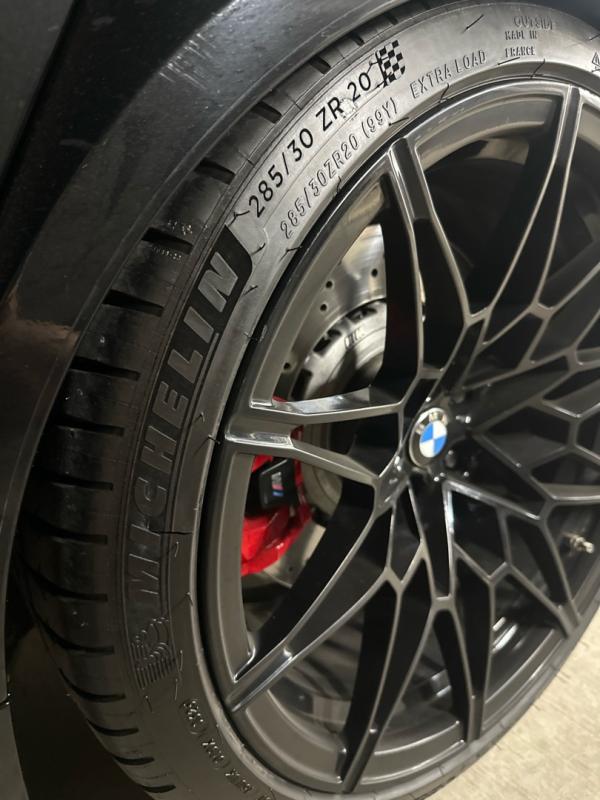

>> Tread patterns are often tuned to accommodate different tire widths. Tires for a particular dimension of a given tireline may vary in appearance from the tire shown in the photograph.

WARNING: Serious or fatal injury may result from tire failure due to underinflation or overloading. To ensure correct air pressure and vehicle load, refer to vehicle owner's manual or tire information placard on the vehicle. Serious injury or death may result from explosion of tire/rim assembly due to improper mounting. Only tire professionals should mount tires and they should never inflate beyond 40 psi to seat the beads. Before mixing types of tires in any configuration on any vehicle, be sure to check the vehicle owner's manual for its recommendations.

DANGER: Never mount a 17" diameter tire on a 17.5" rim.

Inflation pressure increase must not exceed the maximum pressure branded on the tire sidewall. When a customer requests a replacement tire with a lower speed rating than the original equipment tire, you must clearly communicate to him or her that the handling of the vehicle may be different, and that its maximum speed capability is limited to that of the lowest speed-rated tire on the vehicle. Exceeding the lawful speed limit is neither recommended nor endorsed.

For high-speed driving, additional inflation pressure and possibly reduced tire loading and/or upsizing is required. In the absence of specific recommendations by the vehicle manufacturer, use the following guidelines based on those in the European Tyre and Rim Technical Organization Standards Manual.

For speeds over 160km/h (100 mph), load and inflation must be adjusted according to the table below.



(Y)-Speed Rated Sizes:

Maximum Speed (mph)         118    124    130    136       143     149    155    161    168    174    180    186
Inflation Increase (psi)           0       0       0       0        1.5        3    4.5    6    7.5    7.5    7.5    7.5
Load Capacity (% of max) 100    100    100    100      100      100    100    100    100    95    90    85

For speeds above 186 mph (300 kph), consult your vehicle manufacturer and tire dealer.For speeds above 186 mph (300 kph), consult your vehicle manufacturer and tire dealer.
